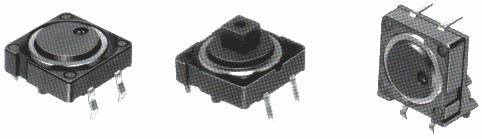

| SKHC |
 |
| Products
Line |
| Vertical type |
| Model |
Operation
force |
Travel |
Ratings
(max.) |
Lifetime
(5mA 5V DC) |
Initial
contact resistance |
Stem
color |
Case
color |
Variety |
| SKHCAA |
1.274N{130gf} |
0.3mm |
50mA
12V DC |
 |
100m§Ù
max. |
Black |
Black |
Joint
stem type |
| SKHCAC |
2.548N{260gf} |
 |
Dark gray |
| SKHCAE |
0.735N{75gf} |
Blue |
| SKHCAG |
1.274N{130gf} |
 |
Black |
Gray |
| SKHCAB |
|
Black |
Black |
Flat
stem type |
| SKHCAD |
2.548N{260gf} |
|
Dark gray |
| SKHCAF |
0.735N{75gf} |
Blue |
| SKHCAH |
1.274N{130gf} |
|
Blue |
Gray |
|
| Horizontal type |
| Model |
Operating
force |
Travel |
Ratings(max.) |
Lifetime
(5mA 5V DC) |
Initial
contact resistance |
Stem
color |
Case
color |
| SKHCLA |
1.274N{130gf} |
0.3mm |
50mA 12V DC |
|
100m§Ù max. |
Black |
Black |
|
| Dimensions |

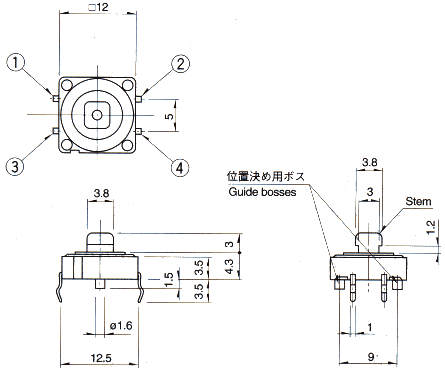

| Joint stem type |
 |

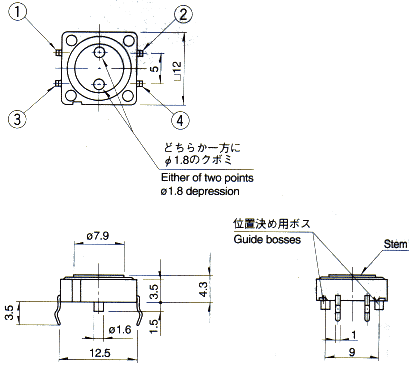

| Flat stem type |
 |

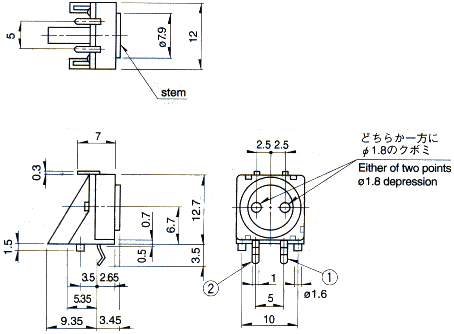

| Horizontal type |
 |
| Joint stem type/Flat stem
type |
Circuit diagram
Printed circuit board mounting hole dimensions
(When viewed from the switch mounting face) |
It is suggested to use a P.C.Board of 1.6mm thick. |
| Horizontal type |
Circuit diagram
Printed circuit board mounting hole dimensions
(When viewed from the switch mounting face) |
It is suggested to use a P.C.Board of 1.6mm thick. |
Tact Switch
