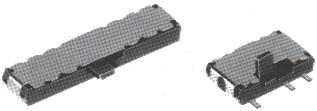

| SSSS8 |
 |
 |
| Typical
Specifications |
| Items |
Standards |
| Ratings
(max.) (Resistive load) |
0.3A 4V DC |
| Contact
resistance (Initial performance/after lifetime) |
70m§Ù max./ 130m§Ù max. |
| Operating
force |
Refer to the dimensions.
Non click type also avaiable. Please consult us. |
| Operating
life |
Without
load |
10,000cycles |
| With load |
10,000 cycles (0.3A 4V DC) |
| Resistance
to soldering heat |
Manual
soldering |
300¡¾5¡É, 5s max. |
| Reflow
soldering |
P.380 |
|
| Products
Line |
| Knob
direction |
Travel |
Knob
thickness |
Poles |
Positions |
No.
Orerno |
Drawing
No. |
| Ground
terminal |
| Without |
With |
| Vertical |
1.5mm |
t0.8mm |
2 |
2 |
SSSS822-A-3¡à |
SSSS822-B-3¡à |
1 |
| 3 |
SSSS823-A-3¡à |
SSSS822-B-3¡à |
2 |
| Horizontal |
t0.4mm |
1 |
4 |
SSSS814-A-1¡à |
SSSS822-B-1¡à |
5 |
| t1.1mm |
1 |
2 |
SSSS812-A-2¡à |
SSSS822-B-2¡à |
3 |
| 3 |
SSSS813-A-2¡à |
SSSS822-B-2¡à |
4 |
| 2 |
2 |
SSSS822-A-2¡à |
SSSS822-B-2¡à |
6 |
| 2mm |
1 |
2 |
SSSS8A2-A-2¡à |
SSSS822-B-2¡à |
7 |
| 3 |
SSSS8A3-A-2¡à |
SSSS822-B-2¡à |
8 |
|
| Dimensions |
| Vertical knob type 1.5mm
travel |
| No. |
Pole-
position |
Dimensions |
Circuit
diagram
(Viewed from the direction A) |
P.C.
Board mounting hole dimensions
(Viewed from the direction A) |
| 1 |
2-2 |
 |
 |
 |
| 2 |
2-3 |
 |
 |
 |
|
| Horizontal knob type 1.5mm
travel |
| No. |
Pole-
position |
Dimensions |
Circuit
diagram
(Viewed from the direction A) |
P.C.
Board mounting hole dimensions
(Viewed from the direction A) |
| 3 |
1-2 |
 |
 |
 |
| 4 |
1-3 |
 |
 |
 |
| 5 |
1-4 |
 |
 |
 |
| 6 |
2-2 |
¡¡ |
 |
 |
|
| Horizontal knob type 2mm
travel |
| No. |
Pole-
position |
Dimensions |
Circuit
diagram
(Viewed from the direction A) |
P.C.
Board mounting hole dimensions
(Viewed from the direction A) |
| 7 |
1-2 |
 |
 |
 |
| 8 |
1-3 |
 |
 |
 |
|
Switch
